Create a network of pipes before the water starts to flow in our re-creation of a classic puzzler. Jordi Santonja shows you how.

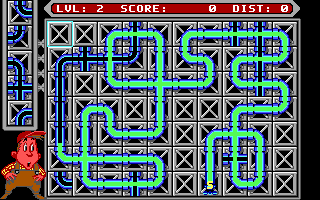

Pipe Mania, also called Pipe Dream in the US, is a puzzle game developed by The Assembly Line in 1989 for Amiga, Atari ST, and PC, and later ported to other platforms, including arcades. The player must place randomly generated sections of pipe onto a grid. When a counter reaches zero, water starts to flow and must reach the longest possible distance through the connected pipes.

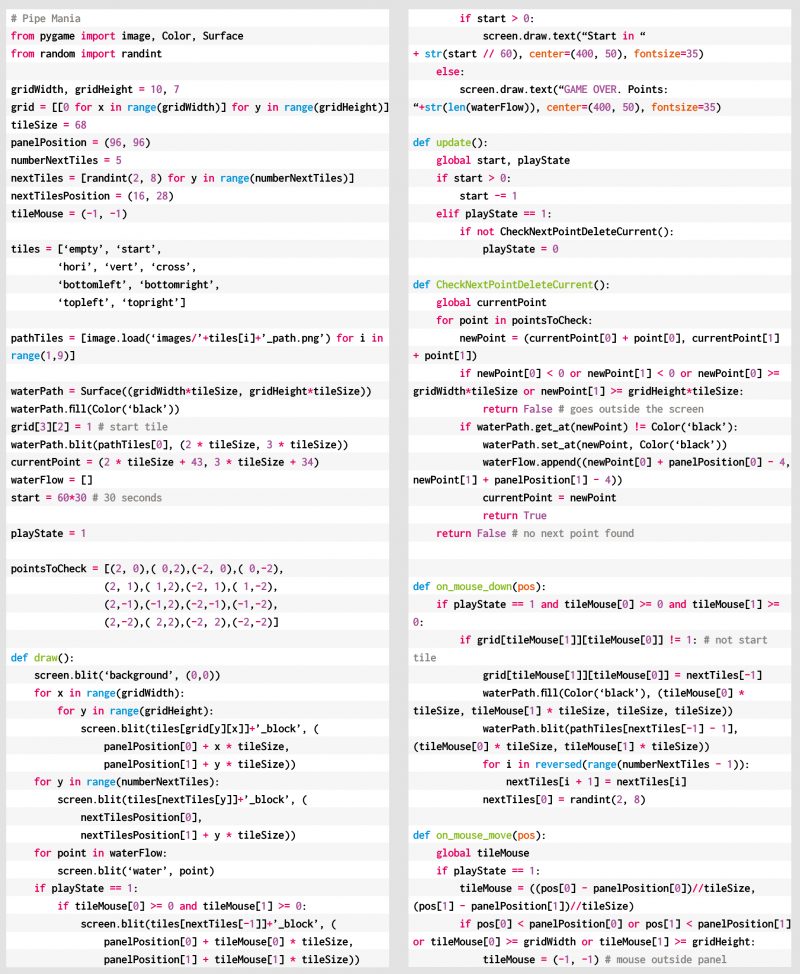

Let’s look at how to recreate Pipe Dream in Python and Pygame Zero. The variable
start is decremented at each frame. It begins with a value of
60*30, so it reaches zero after 30 seconds if our monitor runs at 60 frames per second. In that time, the player can place tiles on the grid to build a path. Every time the user clicks on the grid, the last tile from
nextTiles is placed on the play area and a new random tile appears at the top of the next tiles.
randint(2,8) computes a random value between 2 and 8.
nextTiles are lists of tile values, from 0 to 8, and are copied to the screen in the
draw function with the
grid is a two-dimensional list, with sizes
gridHeight=7. Every pipe piece is placed in
grid with a mouse click. This is managed with the Pygame functions
on_mouse_down, where the variable pos contains the mouse position in the window.
panelPosition defines the position of the top-left corner of the grid in the window. To get the grid cell,
panelPosition is subtracted from
pos, and the result is divided by
tileSize with the integer division
tileMouse stores the resulting cell element, but it is set to
(-1,-1) when the mouse lies outside the grid.
images folder contains the PNGs with the tile images, two for every tile: the graphical image and the path image. The
tiles list contains the name of every tile, and adding to it
_path obtains the name of the file. The values stored in
grid are the indexes of the elements in
waterPath isn’t shown to the user, but it stores the paths that the water is going to follow. The first point of the water path is located in the starting tile, and it’s stored in
update calls the function
CheckNextPointDeleteCurrent, when the water starts flowing. That function finds the next point in the water path, erases it, and adds a new point to the
waterFlow is shown to the user in the
pointsToCheck contains a list of relative positions, offsets, that define a step of two pixels from

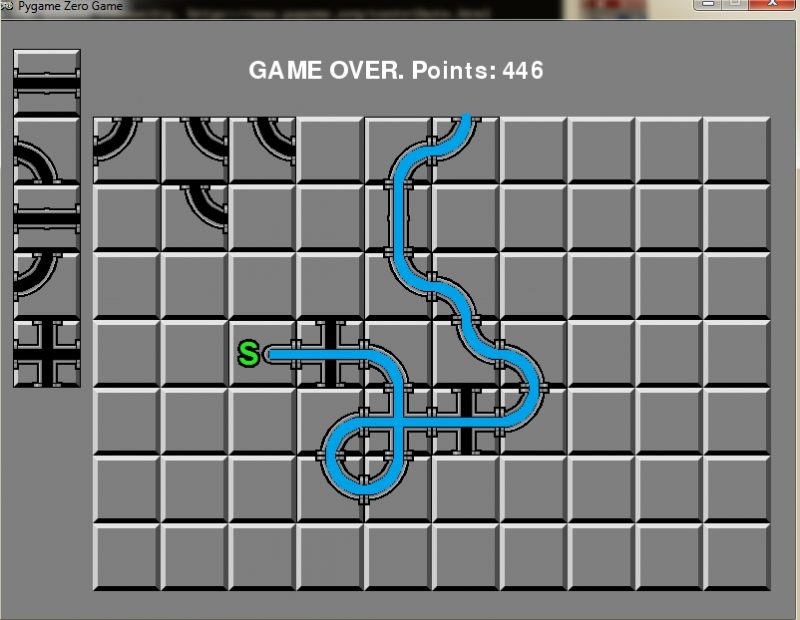

currentPoint in every direction to find the next point. Why two pixels? To be able to define the ‘cross’ tile, where two lines cross each other. In a ‘cross’ tile the water flow must follow a straight line, and this is how the only points found are the next points in the same direction. When no next point is found, the game ends and the score is shown: the number of points in the water path,
playState is set to
0, and no more updates are done.
